La escalera de goma sirve como guardabarros y escalera. Tiene la misma instalación de escalones con guardabarros y se pueden reemplazar entre sí. Fácil de instalar y mantener con una larga vida útil.

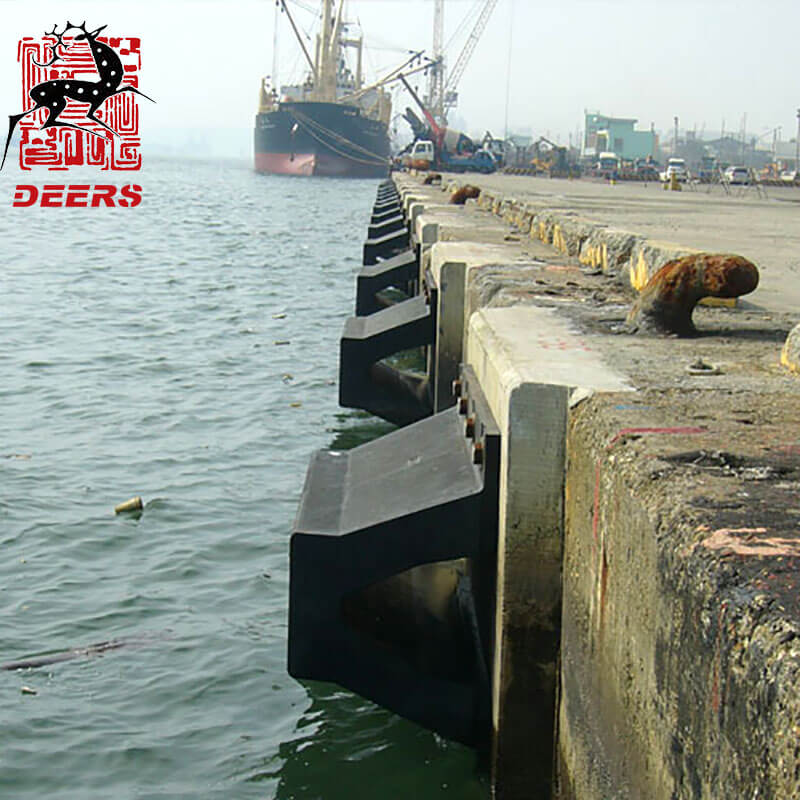

Solicitud:
Es una especie de instalación de protección. Puede absorber energía durante el transporte al costado.
También se puede utilizar como escalera para el mantenimiento de defensas y muelles.

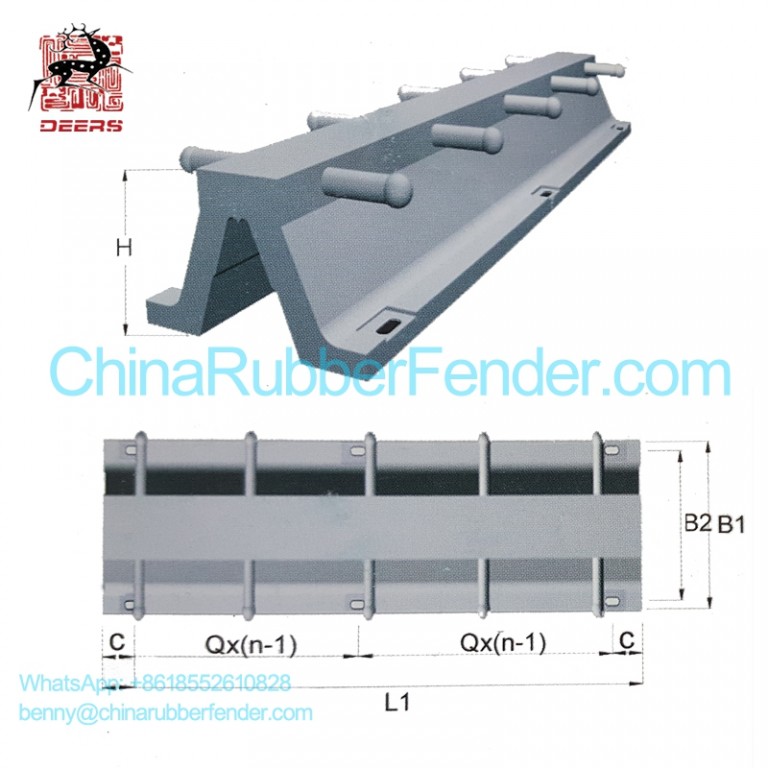

Especificaciones:
Model | L1 | L | Q | C | B1 | B2 | H | J | K | N |
(MM) | (MM) | (MM) | (MM) | (MM) | (MM) | (MM) | (MM) | type | Fastening Points | |
H200ⅹ1500 | 1500 | 1500 | 650 | 100 | 400 | 320 | 200 | 270 | M24 | 3 |
H200ⅹ1800 | 1800 | 1800 | 800 | 100 | 400 | 320 | 200 | 270 | M24 | 3 |
H200ⅹ2100 | 2100 | 2100 | 750 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
H200ⅹ2400 | 2400 | 2400 | 850 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
H200ⅹ2700 | 2700 | 2700 | 850 | 100 | 400 | 320 | 200 | 270 | M24 | 4 |
H200ⅹ3000 | 3000 | 3000 | 700 | 100 | 400 | 320 | 200 | 270 | M24 | 5 |
H300ⅹ1000 | 1150 | 1000 | 870 | 140 | 600 | 490 | 300 | 300 | M30 | 2 |
H300ⅹ1500 | 1650 | 1500 | 685 | 140 | 600 | 490 | 300 | 300 | M30 | 3 |
H300ⅹ2000 | 2150 | 2000 | 625 | 140 | 600 | 490 | 300 | 300 | M30 | 4 |
H300ⅹ2500 | 2650 | 2500 | 790 | 140 | 600 | 490 | 300 | 300 | M30 | 4 |
H300ⅹ3000 | 3150 | 3000 | 725 | 140 | 600 | 490 | 300 | 300 | M30 | 5 |
H300ⅹ3500 | 3650 | 3500 | 674 | 140 | 600 | 490 | 400 | 300 | M30 | 6 |
H400ⅹ1000 | 1200 | 1000 | 900 | 150 | 800 | 670 | 400 | 360 | M36 | 2 |
H400ⅹ1500 | 1700 | 1500 | 700 | 150 | 800 | 670 | 400 | 360 | M36 | 3 |
H400ⅹ2000 | 2200 | 2000 | 635 | 150 | 800 | 670 | 400 | 360 | M36 | 4 |
H400ⅹ2500 | 2700 | 2500 | 800 | 150 | 800 | 670 | 400 | 360 | M36 | 4 |
H400ⅹ3000 | 3200 | 3000 | 725 | 150 | 800 | 670 | 400 | 360 | M36 | 5 |
H400ⅹ3500 | 3700 | 3500 | 680 | 150 | 800 | 670 | 400 | 360 | M36 | 6 |
